Artikelnummer: 004X1540
Anschlussart HE: Innengewinde
Anschlussart TWE: Innengewinde
Anschlussnennweite TWE: G1 1/4"
Anschlussnennweite Zirkulationsleitung: G1"
Anschlussrichtung Primärseite: Vertikal
Anschlusstyp Zirkulationsrohr: Innengewinde
Anschlussweite HE: Rp1 1/4"
Application type: Fresh water modules
Aufbau: wandmontiert
Auslegungstemperatur Konstruktion [°C]: 90 °C
Breite ohne Gehäuse [mm]: 700 mm
Breite Paket [mm]: 1200 mm
CE evaluated: Yes
China RoHS compliance: Out of scope
Contain batteries: No
DeltaP Sekundärseite [bar] [max.]: 0.24 bar

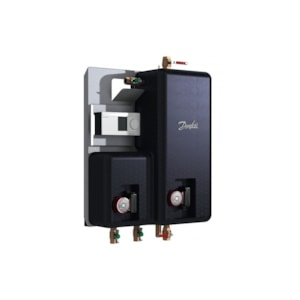

Description: TD-FLS 175kW PUMP-CTRL/ ECL
Druck Primärseite [bar] [max.]: 10 bar
Druck Sekundärseite [bar] [max.]: 10 bar
Druck Zirkulation [bar] [max.]: 0.25 bar
Durchfluss Primärseite [m3/h] [max.]: 3.35 m³/h
Durchfluss Sekundärseite [m3/h] [max.]: 3 m³/h
Durchfluss Zirkulation [m3/h] [max.]: 2 m³/h
Dämmstoff: EPP-Schaumstoff
EU RoHS compliance: Out of scope
Fabrikat Heizungspumpe: Grundfos
Fabrikat TWE-Zirkulationspumpe: Grundfos
Fernwärmestation Version: TD-FLS, 175kW, Pumpe, ECL
