Artikelnummer: 004X1621
Anschlussart FW: geschweißt
Anschlussart HE: geschweißt
Anschlussart TWE: Außengewinde
Anschlussnennweite FW: 48,3/60,3mm
Anschlussnennweite TWE: G2 3/8"
Anschlussnennweite Zirkulationsleitung: G2 3/8"
Anschlussrichtung Primärseite: Vertikal
Anschlusstyp Zirkulationsrohr: Außengewinde
Anschlussweite HE: 48,3/60,3 mm
Application type: DHW storage & charging
Aufbau: stehend
Auslegungstemperatur Konstruktion [°C]: 90 °C
Breite ohne Gehäuse [mm]: 2365 mm
Breite Paket 2 [mm]: 1200 mm
Breite Paket [mm]: 1000 mm
CE evaluated: Yes
China RoHS compliance: Out of scope
Contain batteries: No
DeltaP Primärseite ohne Wärmezähler [bar] [min.]: 0.23 bar
DeltaP Sekundärseite [bar] [max.]: 0.59 bar

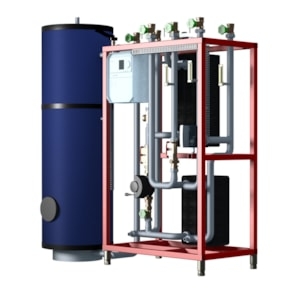

Description: TC-DL 0750 ECL XB
Differenzdruck Primärseite [bar] [max.]: 12 bar
Druck Primärseite [bar] [max.]: 25 bar
Druck Sekundärseite [bar] [max.]: 10 bar
Druck Zirkulation [bar] [max.]: -0.23 bar
Durchfluss Primärseite [m3/h] [max.]: 9.65 m³/h
Durchfluss Sekundärseite [m3/h] [max.]: 12 m³/h
Durchfluss Zirkulation [m3/h] [max.]: 6.75 m³/h
Dämmstoff: EPS mit laminiertem Vlies
EU RoHS compliance: Out of scope
Fabrikat TWE-Pumpe: Grundfos
