Artikelnummer: 004X1619
Anschlussart FW: geschweißt
Anschlussart HE: geschweißt
Anschlussart TWE: Außengewinde
Anschlussnennweite FW: 48,3 mm
Anschlussnennweite TWE: G1 3/4"
Anschlussnennweite Zirkulationsleitung: G1 1/2"
Anschlussrichtung Primärseite: Vertikal
Anschlusstyp Zirkulationsrohr: Außengewinde
Anschlussweite HE: 48,3 mm
Application type: DHW storage & charging
Aufbau: stehend
Auslegungstemperatur Konstruktion [°C]: 90 °C
Breite ohne Gehäuse [mm]: 1950 mm
Breite Paket 2 [mm]: 1200 mm
Breite Paket [mm]: 750 mm
CE evaluated: Yes
China RoHS compliance: Out of scope
Contain batteries: No
DeltaP Primärseite ohne Wärmezähler [bar] [min.]: 0.2 bar
DeltaP Sekundärseite [bar] [max.]: 0.64 bar

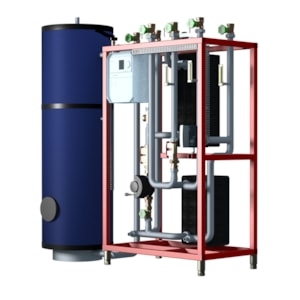

Description: TC-DL 0350 ECL XB
Differenzdruck Primärseite [bar] [max.]: 12 bar
Druck Primärseite [bar] [max.]: 25 bar
Druck Sekundärseite [bar] [max.]: 10 bar
Druck Zirkulation [bar] [max.]: -0.2 bar
Durchfluss Primärseite [m3/h] [max.]: 4.44 m³/h
Durchfluss Sekundärseite [m3/h] [max.]: 7.5 m³/h
Durchfluss Zirkulation [m3/h] [max.]: 3.15 m³/h
Dämmstoff: EPS mit laminiertem Vlies
EU RoHS compliance: Out of scope
Fabrikat TWE-Pumpe: Wilo
